35VQ Vane Pumps with High Speed and High Pressure

Key words:

VANE PUMP
VQ
HYDRAULIC PUMP
VQ Series vane pumps with high performance and high pressure which designed for constraction machinery especially for mobile machinery. Features: 1.Designed by intra-vane structure, reduce the vane pressure to rotor, makes stable performance and longer life in high speed and pressure. 2.To adopt folating structure for side plate,will do a compensation for end-face clearance by automatic,makes high speed and high pressure which can up to 21MPa. 3.The plate is made of dual-metal material, improved the seizure resistance. Complete displacement, composite structure and high pricise spare parts allows convenient maintenance.

Details

Specifications



ModelDisplacement
Code
Geometry
Displacement
mL/r
Antiwear oil  Weight
Kg
Max Pressure
MPa
Max Speed
r/min
35VQ216421250022.7
2579.2
3095.0
32101
351092400
38118
4514214

Note: ① Performance constants: SAE 10W fluid @82℃ , and pump inlet @OPSIG (14.7PSIA).
          ② The outlet pressure must always be higher than the inlet pressure.



Model Code








Installation and Use



1. During installation, the concentricity tolerance between the pump shaft and the motor must be less than 0.10 mm (TIR), the maximum allowable angular error must be less than 0.2 degrees, and a flexible coupling must be used; the pump shaft must not bear radial and axial loads; the bracket must be strong and rigid, and able to fully absorb vibrations.
2. Set the suction pressure of the pump inlet port: The recommended inlet pressure is 0 to 35 Kpa.
3. The oil should be kept clean, and the pipelines and oil tank must be thoroughly cleaned; the cleanliness of the oil should be within NSA12.
4. Normal pump operation (under rated conditions) is based on the use of SAE10W oil (or equivalent viscosity) in the range of 38℃ to 82℃.
5. Check the inlet, outlet, and rotation direction before starting the pump. After fixing the pump, manually rotate the pump shaft evenly and flexibly. During the first start-up, if the pump does not prime immediately, air should be bled from the pump discharge line.
6. During the first use, the pump body and oil suction pipe should be filled with oil, and the pump should not be operated without oil.
7. Do not start the pump when the outlet pressure is lower than the inlet pressure. This will cause operational noise and blade instability.
8. Cold start conditions: When operating SAE10W oil, the viscosity is in the range of 860 to 40 cSt, and the speed and pressure should be limited to 50% or less of their respective rated values until the system warms up. When the fluid viscosity is greater than 860 cSt, extreme care must be taken when starting the equipment, and attention should be paid to heating the entire system, including remote cylinders and motors.
9. At high temperatures, the viscosity should not be less than 13 cSt, and the temperature should not exceed 99℃, as the expected life of the cassette airbag and elastomer will be reduced.



Installation Connection Dimensions

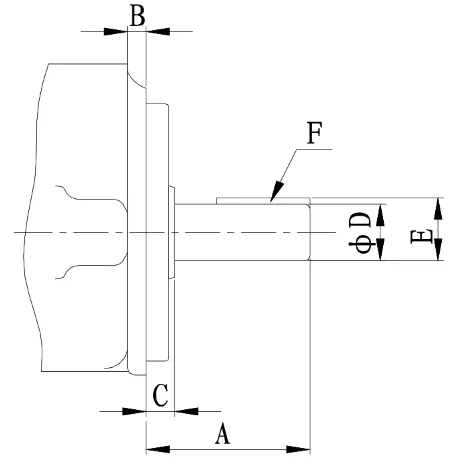

◎ Str. Key shaft



ModelCold of shaftABCDEF Key
Width × Length
35VQ173.29.511.131.75/31.7235.25/35.107.94×40
8686.49.511.134.90/34.8738.4/38.157.94×54

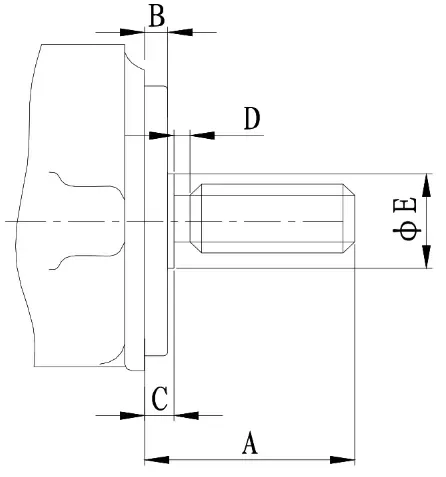

◎ Spline shaft



ModelCold of shaftABCDESpline Data
Number of TeethPitchMajor DiameterMinor DiameterFlast root fit
35VQ1158.79.511.16.3535.11412/2431.7/31.6726.99/26.64Large
diameter fit
